| 技术参数 | 单位 | CZLA1 | CZLA1 C3 |
| 额定载荷 | KG | 50.100.150 | 50.100.120.150 |
| 额定输出 | mV/V | 2±0.2 | 2±0.2 |
| 零点平衡 | mV/V | 0±0.10 | 0±0.10 |
| 温度对灵敏度影响 | %/10K | ±0.02 | ±0.020 |
| 温度对零点影响 | %/10K | ±0.03 | ±0.030 |
| 线性误差 | % | ±0.02 | ±0.015 |
| 滞后 | % | ±0.02 | ±0.015 |
| 蠕变及蠕变恢复（30分钟） | % | ±0.02 | ±0.020 |
| 输入电阻 | Ω | 420±20 | 420±15 |
| 输出电阻 | Ω | 350±5 | 350±5 |
| 参考电压 | V | 5 | 5 |
| 最大工作电压 | V | 15 | 15 |
| 绝缘电阻 | G Ω/100V | &2 | &5 |
| 额定温度范围 | ℃ | -10~+40 | -10~+40 |
| 工作温度范围 | ℃ | -20~+50 | -20~+50 |
| 存储温度范围 | ℃ | -30~+70 | -30~+70 |
| 保护等级 | IP66 |

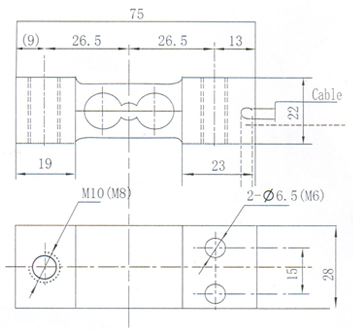

CZLA1 Mounting dimension
Color code
Excitation+ biue
E xcitation- black
Output+ white
Output- red
Cable length:L=350±5mm
